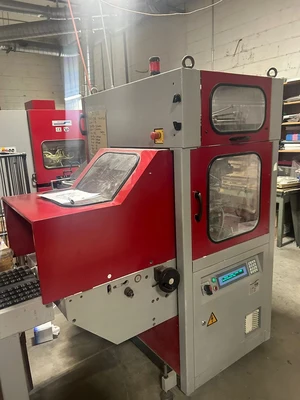

2001 Müller Martini Acoro A7

Description

2001/2005 Muller Martini "Acoro A7" Perfect Binder

High speed perfect binding line (7,000 p/h)

Comprising:

(2001) 15 x 3693/24" top loading feeders + hand feed

M.M. ‘ASAC’ calliper control

Jogging unit 3643 and spiral raceway element 3641

M.M. Automatic motorised make-ready with “Commander” Control System.

Programmable with data retrieval. Menu-guided set-up and on-the-run adjustment.

Book transfer section with main drive motor

M.M. 3027-22 ‘Acoro A7’ binder with 22 clamps

Spine preparation units with cutting/milling & notching/brushing

Interchangeable glue tanks comprising;

EVA hot-melt spine glue pre-melt tanks, 80 & 30 litre capacity, floor standing

EVA hot-melt cam-controlled spine gluing tank on universal base

EVA hot-melt cam-controlled side gluing tank on universal base

Gauzing/lining unit

Pile/rotary cover feeder with scoring

Cover nipping station with 2 x nipping stations

Lay-down delivery unit to conveyor system

(2005) M.M. 3672 ‘Merit S’ three knife trimmer to;

(2005) M.M. CB16 Compensating book stacker

Including accessories, tools & manuals.

Specification:

A7/24” Binder book sizes, Max: 510 x 320 mm

Min: 140 x 100 mm

Book thickness: 3 -- 60 mm

Clamp opening, Max: 82 mm

Open cover width: 203 - 642 mm

Mechanical speed, Max: 7,000 cycles/hr.
