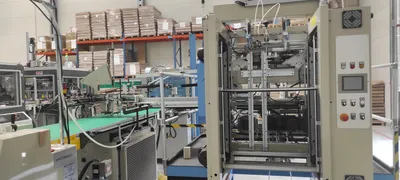

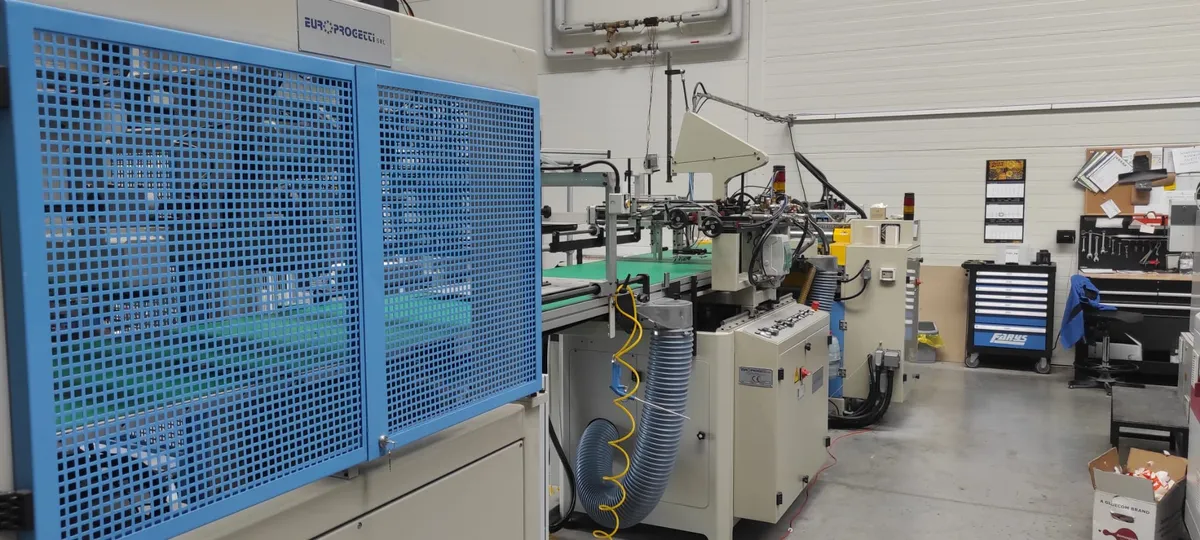

2021 Europrogetti EPS175L Automatic Rigid Box Line

Description

Digital line for the production of rigid, angled, tall and cost saving ‘T shape’ & cross shape covered boxes.Very low use, in ‘like new’ condition!Available immediately.
Equipped with:EPQ175SB/1 Automatic Quad Stayer- High Pile Feeder for Board Blanks- Feeder with non-stop device- Double board blanks warning system with machine stop- Board blanks feeding through suckers with lift at the front edge - Sliding system with rolls and belts at adjustable speed to eliminate breaking of board blanks- Precise location of board blanks under forming block with pushers- Precision adjustment of forming block position through brushless motor- Large diameter thermo-tape reels located on the side of the machine with an “end-of –reel” acoustic signal. Facility to change reel without stopping machine- Thermo tape heat-sealing system with adjustable pressure pads on the corners of forming block- “Cross-shaped” and “T-shaped” stitching system- Box ejection by cylinder and suction to position the box precisely on conveyor belt- Box transport system to the spotter with 2 operating modes - Digital display and temperature control of the 4 heat sealing tape anvils

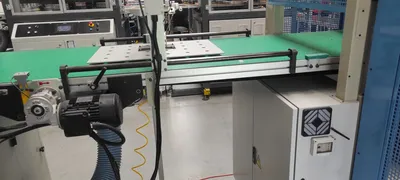

ALFACEHB5” Automatic Gluing Machine- Automatic Glue Viscosity Control Unit- Automatic sheet feeder with lifting the rear of the sheet for the insert of papers up to 300 g/m2- Stainless steel, chromed and rectified glue rolls- Rollers/belt speed automatic adjustment- Vacuum conveyor with running digitally adjustable gap control- Servo driven motor on vacuum conveyor with mm by mm variable step control - Centralised lubrication- Strong aluminium vacuum suction channel with guides for suction conveyor belt- Perforated green conveyor belt in polyurethane, with higher suction capacity to the centre - Additional vacuum box for small sheets- Controlled acceleration and deceleration of conveyor belt, motor driven- Auto sheet detection - if glue pickers not lowered, paper will not feed- Glue Tank “GTCEC02” with capacity of 70 litres- Anti-air bubbles system
EPS175SB Automatic Spotter- Choice of left or right-hand side- Suction speed adjustable with inverter- Box unloading even without research- Paper reading by three optic fibres and hydraulic control unit- Mechanical guide unit to control box movement during positioning- Simple size change-over
EPW175SB Automatic Wrapping Machine- The wrapper is the Master of the line - Possibility of ‘T’ shape wrap for boxes up to 60 mm width- Correct ergonomic working height- Work cycle controlled by P.L.C - no mechanical cam- Possibility to lift box from belt- Easy fixing and locking tools- Regulating pressing time up to 9,99 seconds- Standard or sequential inside turn-in - Possibility of inside wrapping up to 70 mm- 800 job programs storage
Accessories:- Kit for window box - Kit for lateral turn-in up to 80mm - Tooling for bottom or lid
Specification:Maximum size of the paper sheets: 900 x 720 mmMinimum size of the paper sheets: 123 x 88 mmMaximum box size Minimum box sizeLength: 600 mm Length: 50 mmWidth: 415 mm Width: 30 mmHeight: 185 mm Height: 12 mm- Maximum pile height in Quad Stayer: 970 mm- Maximum Heat-sealing tape reel diameter: 400 mm- Pile height in the gluer: 350 mm- Speed: up to 34 cycles/minutes (subject to sizes and design)
