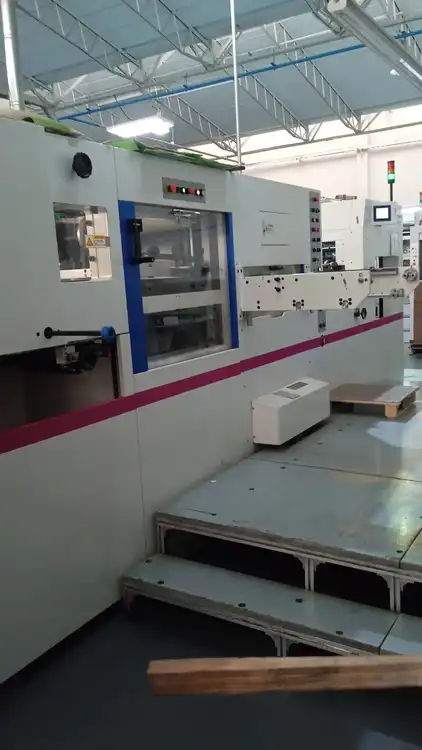

2014 Masterwork Ecopress MK1050E Die Cutter with Stripping

Description

2014 Masterwork Ecopress MK1050E

Feeding Unit

- Stream-wise feeding system with a highest speed of 125 sheets per minute
- Four suction cups each for lifting paper from feeder pile and moving paper to feeding table
- Height and angle of suction cups are easily adjustable to accommodate paper condition
- Suction barrels and dividers are with ultra-hard coat finish
- 3 electronic safety detectors preventing feeder from over-ascending of feeder pile
- Motor assisted adjustment of the transversal position of feeder pile table
- Lateral blowing system enhancing paper separation
- Precision double sheet detector
- Easy changeover of pull and push side guides simply by turning a bolt without the need of removing and replacing complete side guide
- Side and front guides with photocells
- Single position engagement electromagnetic clutch insures the first sheet after every re-start of machine is always fed to front lays for easy, time-saving and material-saving make-ready
- Paper speed slow-down prior to arriving at front guides preventing paper from getting curled
- Photo-electric detector with automatic stop system on feeding table in case of paper jam
- PLC and electronic cam for timing control
- Brush wheel for thin paper 4 set
- Lamination for thick paper 10 pieces
- Lamination for thin paper 30 pieces
- Non-stop sheet feeding plate 6 pieces

Platen Press Unit

- Micro adjustment of cutting force by worm gear driven by servo motor
- Crank shaft made of 40Cr steel
- Machine frames, upper and lower platens made of QT60 ductile iron with resin coated sand with Meehanite Die Cast Iron Technology, with weathering and twice heat treatments
- Accurate positioning of Cutting chase controlled by precision photocell sensors
- Cutting chase turn-over device
- Air cooling system for gear box lubrication oil
- Overload protection device with torque limiter for the highest safety of operator and equipment
- Gripper bars with grippers made of lightweight and durable aluminum alloy with ultra-hard coat and anodized finish ensure accurate and consistent paper registering
- One universal cutting chase
- Ultra low stretch and friction gripper chain made in England
- 3.0mm+1.2mm Cutting plates
- Patented device for quick compensation of gripper chain elongation if any, insuring accurate paper registering
- Pneumatic lock-up and release of cutting chase
- Electronic detector detecting sheet breakage of all sheet size convertible by the machine
- One gripper bar

Triple Action Stripping Device

- Driving system for upper, middle and lower stripping frames
- Aluminum alloy stripping frame x 4 pcs
- Stripping pin holder x 100 sets
- Holder for tooling bar x 24 sets
- Retractable stripping pin x 30 sets
- Stripping pin x 200 pcs
- Connector for stripping pin x 90 pcs

Delivery Unit

- Non-stop delivery system with 2 wooden paper supports
- Safety photo-electric devices control delivery pile height
- Adjustable depressor brush helps unloading paper from grippers and piling up paper
- Production counter with tape inserter

Mechanical, Electric and Safety Devices

- Mitsubishi PLC monitoring and self-diagnostic system with information display screen
- Omron Electronic cam and index device
- Main motor with pneumatic clutch
- SKF bearings
- 43 electronic detectors on entire machine for the highest safety of equipment and operators
- Easily accessible emergency stop switches on entire machine
- All electronic and electrical parts are CE approved
- Overload protector for the safety of operator and equipment
- Security covers for live parts are CE approved

Automatic Lubrication and Cooling System

- Centralized automatic lubrication for the entire machine with automatic oil pump and
- distribution system
- Air cooling system for lubrication oil of crank shaft
- Automatic lubrication system with preset timer for gripper chains

Quality Approval

- All electronic and electrical parts are CE or UL approved
- The entire machine is inspected and approved by TUV as complying CE standard

Others

- Operation platform
- Tools box
- Operation manual
