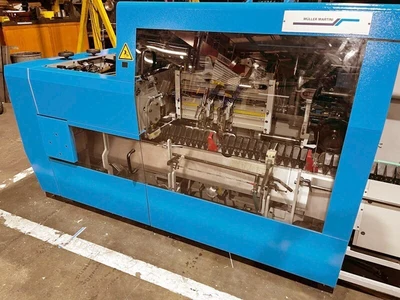

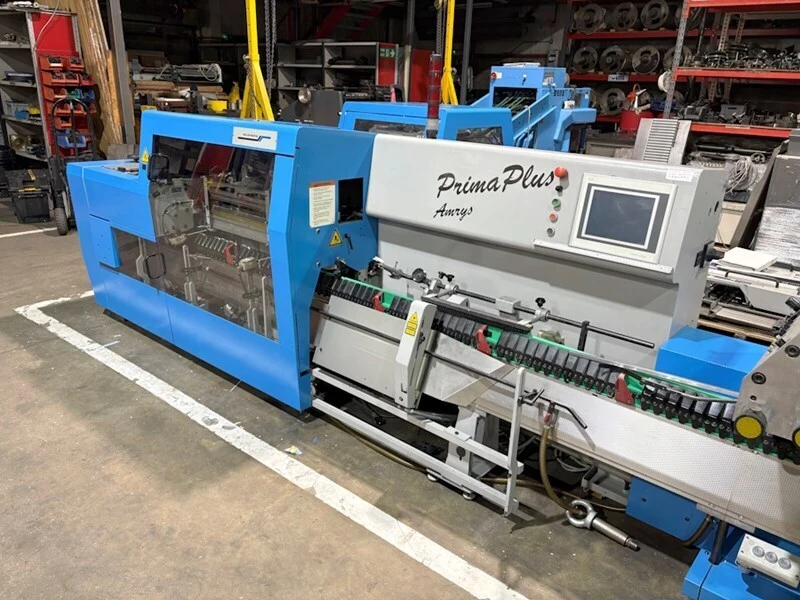

Used 2008 MULLER MARTINI PRIMA PLUS (AMRYS) | Saddle Stitcher

Description

(Automatic Make Ready System – stitcher & trimmer only).

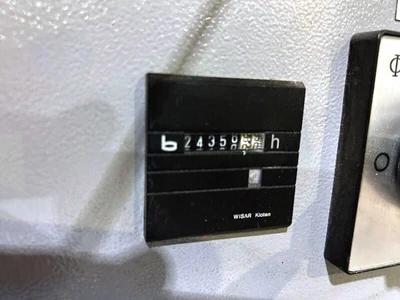

Extremely low hour count – only 24,000/hrs!

Equipped with:
10 Station gathering track with double hand feed position

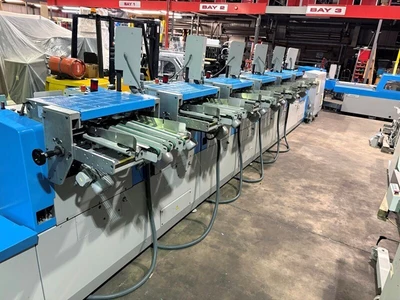

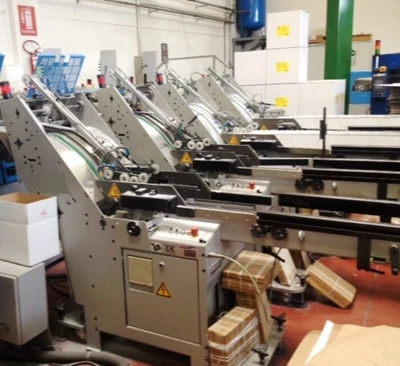

6 x 0370 top loading feeders (Non AMRYS)
1529 Cover folder/feeder – A4 landscape capability (Non-AMRYS)
Oblique sheet monitor and ridge caliper control
PLC control with display and AMRYS

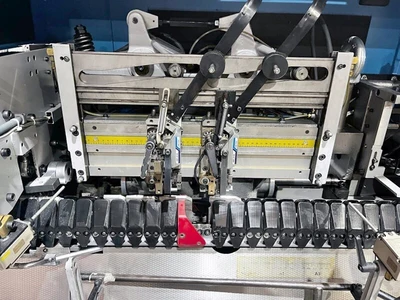

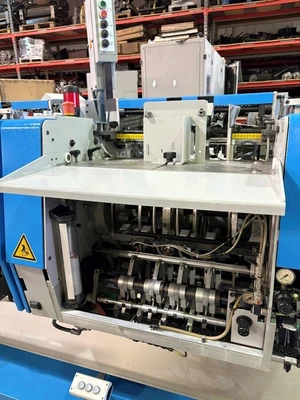

Prima 0390 stitching unit, 2 x HK75 heads and 4031 stitch control

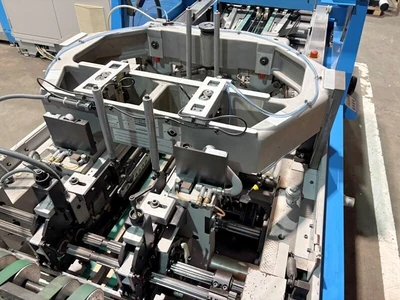

0449 three knife trimmer with AMRYS and trim monitor
Rima RS-1212S compensating counter stacker
Including Becker vacuum air centre, accessories & manuals.
Note: In-house compressed air supply required.

Specification:
Section size (Untrimmed), Max: 480 x 320 mm (with lap – 18 mm)
Max: 400 x 300 mm (without lap)
Book size (Trimmed), Max: 475 x 300 x 13 mm
Min: 148 x 105 mm
Stitching thickness, Max: 6 mm
Mechanical speed, Max: 14,000 Cycles/Hr.

Option of: 6 x 1591 Stream feeders with extended infeed.
