2020 Mark Andy Evolution 13" Eight Color

Description

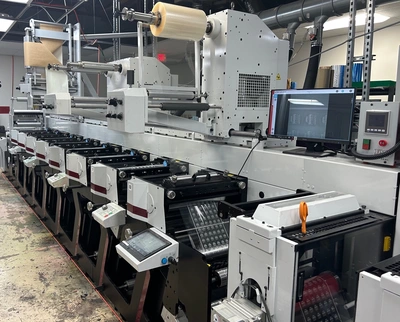

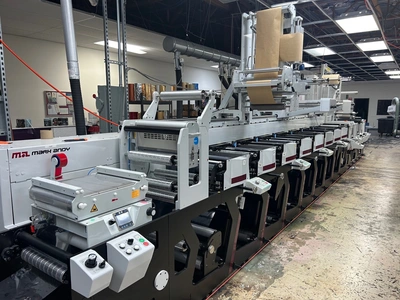

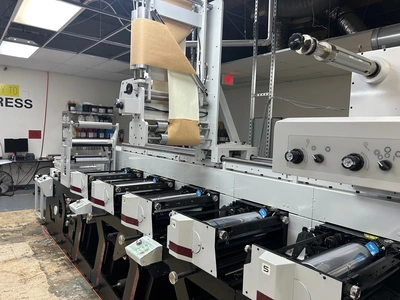

2020 Mark Andy Evolution 330mm (13”) Eight Color Flexo Label Press
The 2020 Mark Andy Evolution Series is an eight-color, 13-inch Flexo press designed for high-speed, flexible label production. It's equipped with full UV curing. This press is known for its speed, flexibility, and scalability, making it suitable for diverse label printing needs.

Only 5900 hours

Unwind
1 Cantilevered unwind with 40” capacity, vertical dancer with closed loop control and electronic web guide
1 Roll lift for cantilevered unwind
1 Servo driven infeed pacing with constant tension control and pretension
1 Ultrasonic sensor upgrade for web guide – includes 2 sensors
1 Teknek single sided web cleaner
1 Mounting for Teknek web cleaner

Print Station
8 Print station module with load and lock inking and bearer capture system
8 Anilox Roll (Customer choice of Cheshire or Interflex)
8 Standard volume ink pan
8 Standard doctor blade assembly
8 Meter roll with bearings
8 Keco non-stick coating for ink pan
8 Anilox drive Oldham coupling and bearings

Rail Systems
8 Rail system section over print station
1 Web turnbar – rail mounted – include moveable platform and idler roll assembly for upward webpath
1 Cold foil unwind and waste windup – rail mounted – includes moveable nip roll assembly and idler rolls
1 24” laminator, manual tension, with magnetic particle brake – includes moveable platform and moveable nip roll assembly

Hot Air Drying
8 Modular Re-circulation Dryer with independent air flow balancing and heating control
1 Modular Re-circulation Dryer base system with power distribution
8 Closed loop temperature control per station

GEW UV Curing
1 GEW UV Base System for cassettes with RLT power supplies mounted in lower position, includes press interface
2 E2C Arc Cassette with housing; includes light shielding, RLT Rack (if more than one cassette)
1 Extended flow webpath for final UV position – single lamp
2 GEW quartz filter

Press Control
1 Servo control with 750 fpm maximum press speed and remote diagnostics
11 Auto register locations (one required per print station module, one per conventional diecut module, one per Quick Change diecut module, and one per sheeting module (if applicable)
8 Pre-register – print station
1 VariPrint Capability

Diecut Head
1 Single vertical slot diecut head with servo driven tooling
1 Single vertical slot diecut head with servo driven tooling
1 Automated die throw off
1 Die loading hoist – 300 pound capacity
1 DMS hot foil system – with TK2000 Torkit load cells

Waste Windup Head
1 Waste Windup Head – with pneumatic clutch – 32” capacity
1 Rider roll for waste windup

Exit Pacing
1 Exit pacing head with servo drive, constant tension control and pretension
1 Air circular knife slitter with 3 blades
2 Extra circular knife blade assembly

Sheeting
1 Sheeting head with servo driven tooling

Inspection
1 BST Powerscope vision system with motorized traverse
1 Touch screen interface for BST Powerscope vision system
1 Mounting and idlers for vision system

Rewind
1 Cantilevered lower rewind with 40” capacity and taper tension, servo

Miscellaneous Options
1 Rotometrics Hydra Jack – includes die pressure gauge

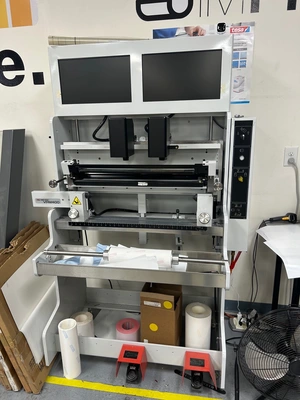

1 VPM400 Video Plate Mounter – Extremely accurate and user friendly plate mounting system with an advanced video system and adjustable mounting table. Supports p to 26” long plate cylinders and 32” repeat length. Includes Brake for Performance Series tooling.

Rapid Changeover Package
1 Quick change cart – holds 8 sets of plate cylinders, anilox rolls, ink pans, and doctor blade assemblies
2 Smart Blade Doctor Blade Holder System
2 Low volume ink pan (for use with UV ink only)
2 Keco non-stick coating for ink pan
