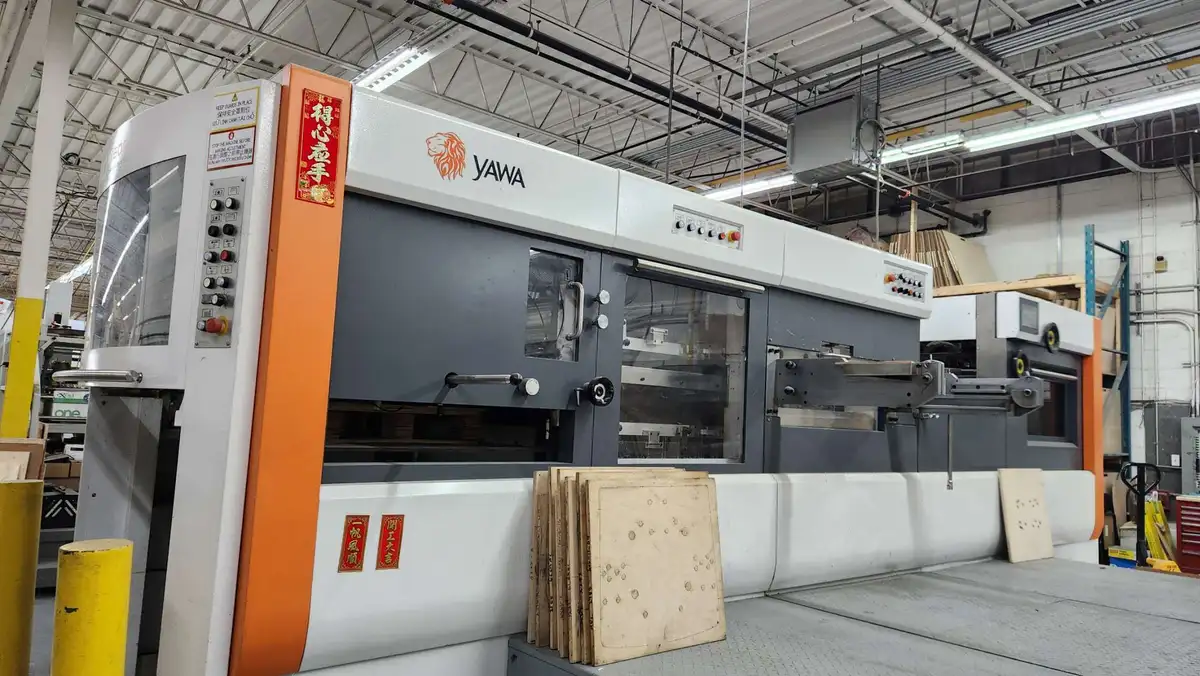

2016 YAWA TD1060S Automatic Die Cutter with Stripping

Features
* High Speeds upto 7500/sph
* PLC and Servo Control
* HMI with Auto Safety Check
* Operator Friendly

Specifications
Sheet Size (Max): 41.73″ x 29.13″ (1060 x 740 mm)
Sheet Size (Min): 15.74″ x 14.17″ (400 x 360 mm)
Pile Height (Feeder): 59.05″ (1150 mm)
Pile Height (Delivery): 43.30″ (1100 mm)

Die-Cutting
Die Cutting Size (Max): 40.94″ x 28.74″ (1040 x 730 mm)
Pressure (Max): 300 Tons
Speed (Max): 7500 Sheets Per Hour
Height of Cutting Rules: 0.93″ (23.8 mm)
Chase Size (Inside): 44.09″ x 29.92″ (1120 x 760 mm)
Stock Range: Cardboard 90 ~ 2000 g/m², (E,B LUTE)
Gripper Margin (Min): 0.15″ (4mm)

Power Consumption
Main motor capacity: 11kw
Total power capacity: 23kw

Footprint
Dimensions (LxWxH): 19.68′ x 13.77′ x 7.87′ ft (6000 x 4200 x 2400 mm)
Weight: 35,274 Lbs (16000 Kg)
